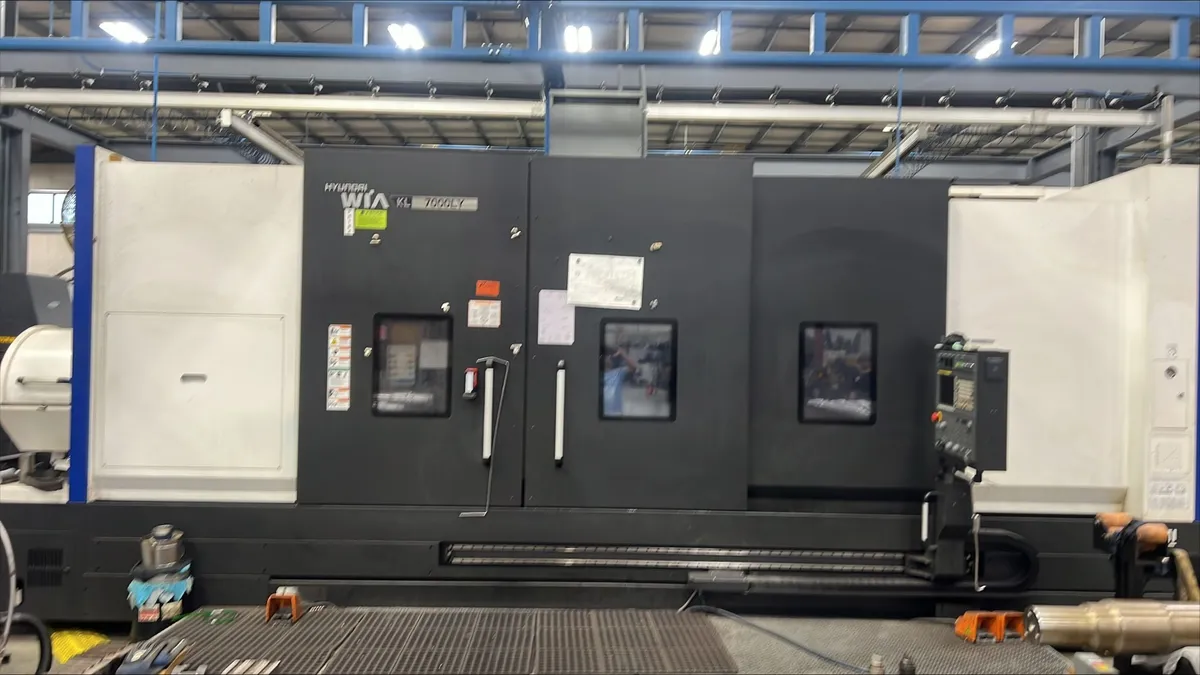

2022 Hyundai Wia KL7000LY, 24" Chuck Y Axis
Have one to sell?
ConditionUsed
1 available
2022 Hyundai Wia KL7000LY, 24" Chuck Y Axis, 36" Turning Diameter, 120" Centers
Fanuc 32i Series Control
Ø36.2” (920mm) Max. turning diameter
128” (3,250mm) Max turning length
Ø6.5” (165mm)
Powerful 60 HP (45kW) spindle motor
High Torque 5,109 lbs.ft
1,500 RPM [700 RPM]
Live Tool: 3,000 rpm BMT 85P
15HP / 103.3 lbf.ft torque
A1-15 spindle nose
Travel
X/Y/Z :19.7” / 8.7” / 129.1” (500 / 220 / 3,280mm)
Rapid speed:
X/Y/Z : 472 / 394 / 472 IPM(12 / 10 / 12m/min)
Box guideways
Programmable MT# 6 Built in tail stock
Auto Tool Setter [Manual Tool Setter]
Tool size: □1.3” / Ø3.1” (□32mm / Ø80mm)
87 PSI coolant system (290 PSI_opt.)
Spindle override 50% to 150%
Double Pre-Tensioned Ball screws
Chip Conveyor (47” discharge height)
3 color tower signal light
Full enclosure splash guard
2022 Hyundai Wia KL7000LY, 24" Chuck Y Axis, 36" Turning Diameter, 120" Centers
Imperial
| Swing | 47.2" |
| Machining Length | 128" |
| Turning Dia | 36.2" |
| Chuck Size-Main | 24" |
| Bar Capacity-Main | 6.5" |
| Spindle Power-Main | 60 hp |
| Spindle Speed-Main | 1,500 RPM |
| X-Axis Travel | 19.7" |
| Y-Axis Travel | 8.7" |
| Z-Axis Travel | 129" |
| Live Spindle Motor | 15 hp |
| Live Spindle Speed | 3,000 RPM |
| Turret Positions | 12 |
| Tailstock | Yes |
| Control | CNC (Fanuc 32i) |
Fanuc 32i Series Control
Ø36.2” (920mm) Max. turning diameter
128” (3,250mm) Max turning length
Ø6.5” (165mm)
Powerful 60 HP (45kW) spindle motor
High Torque 5,109 lbs.ft
1,500 RPM [700 RPM]
Live Tool: 3,000 rpm BMT 85P
15HP / 103.3 lbf.ft torque
A1-15 spindle nose
Travel
X/Y/Z :19.7” / 8.7” / 129.1” (500 / 220 / 3,280mm)
Rapid speed:
X/Y/Z : 472 / 394 / 472 IPM(12 / 10 / 12m/min)
Box guideways
Programmable MT# 6 Built in tail stock
Auto Tool Setter [Manual Tool Setter]
Tool size: □1.3” / Ø3.1” (□32mm / Ø80mm)
87 PSI coolant system (290 PSI_opt.)
Spindle override 50% to 150%
Double Pre-Tensioned Ball screws
Chip Conveyor (47” discharge height)
3 color tower signal light
Full enclosure splash guard
