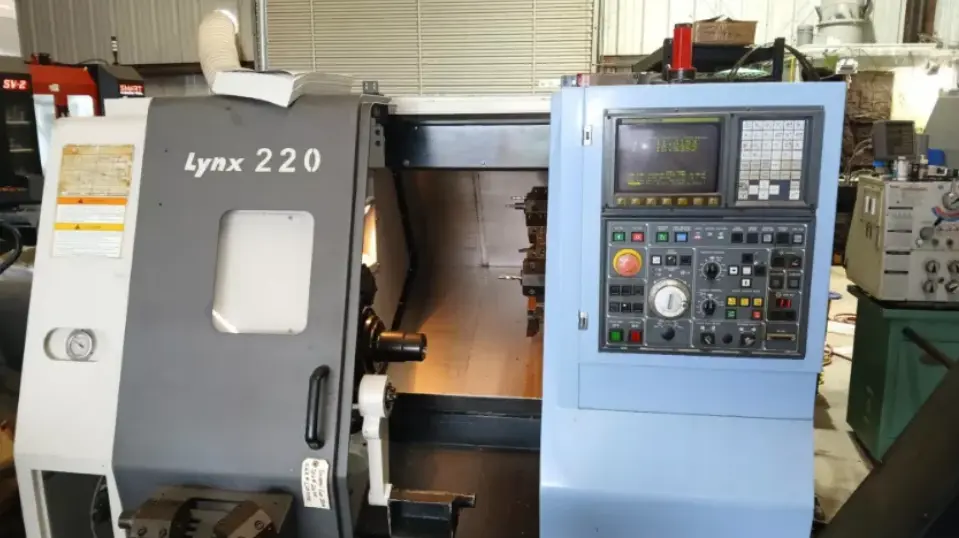

2000 Doosan Lynx 220A

MANUFACTURER: DOOSAN
MODEL: LYNX 220
CNC CONTROL: FANUC I SERIES CONTROL PANEL BLOCK
SERIAL NUMBER: L2201192
MODEL DESIGNATION NUMBER: NL21H0IBA02
ELECTRICAL REQUIREMENT: 23.68 KVA
INPUT PHASE / VOLTAGE: 3-PHASE / 220V AC
FULL LOAD CURRENT: 62.15 A
SHORT-CIRCUIT RATING (SCCR): 17,000 A
RECORDED RUN TIME HOURS: 4144 HOURS
MAX SWING OVER BED: 20.1" (510 MM)
MAX SWING OVER SADDLE: 11.4" (290 MM)
MAX TURNING DIAMETER: 12.6" (320 MM)
MAX TURNING LENGTH: 12.7" (322 MM)
MAX BAR CAPACITY: 1.81" (45 MM)
SPINDLE NOSE: A2-5
SPINDLE BORE DIAMETER: 2.09" (53 MM)
SPINDLE SPEED RANGE: 60 - 6,000 RPM
SPINDLE MOTOR POWER: 15 HP (11 KW CONTINUOUS / 15 KW MAX)
FULL LOAD SPINDLE TORQUE: 70.4 FT-LBS
TURRET CAPACITY: 12 STATIONS
TURRET INDEX TIME: 0.15 SECONDS (SINGLE STEP)
OD TOOL SHANK SIZE: 1.0" X 1.0" (25 MM)
MAX BORING BAR DIAMETER: 1.5" (40 MM)
X-AXIS TRAVEL: 6.9" (175 MM)
Z-AXIS TRAVEL: 13.0" (330 MM)
X-AXIS RAPID TRAVERSE: 1,181 IPM (30 M/MIN)
Z-AXIS RAPID TRAVERSE: 1,417 IPM (36 M/MIN)
FLOOR FOOTPRINT (L X W): 90" X 63" (2286 MM X 1600 MM)
MACHINE HEIGHT: 65" (1651 MM)
MACHINE WEIGHT: 7,716 LBS (3,500 KG)
