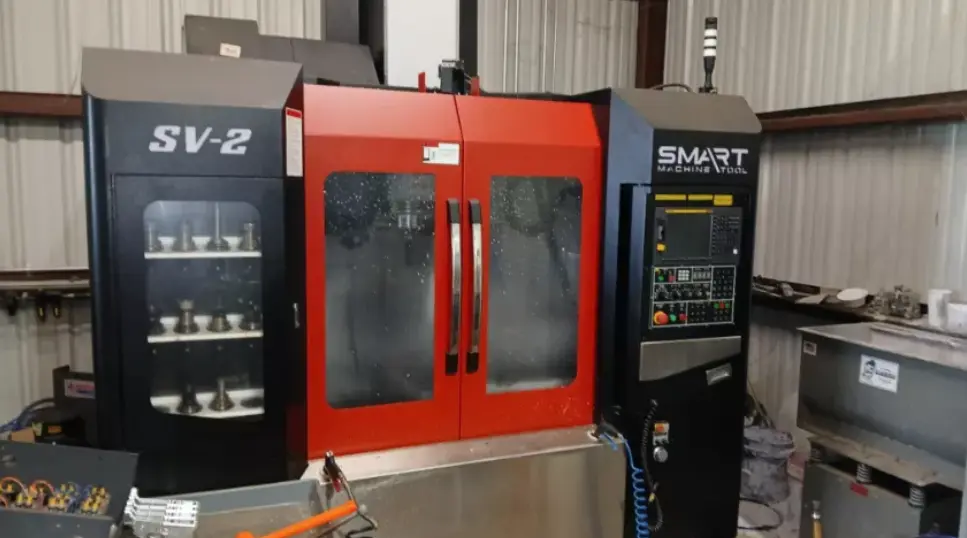

2025 Smart Machine Tool SV-2

MANUFACTURER: SMART MACHINE TOOL / DYNAMIC INTERNATIONAL INC. (PEWAUKEE, WI, USA)
MODEL: SV-2 (SV 2)
SERIAL NUMBER: 3859
CNC CONTROL: FANUC SERIES 0I-MF PLUS
ELECTRICAL CAPACITY: 40 KVA
VOLTAGE REQUIREMENT: 220 V / 3-PHASE / 60 HZ
SHORT CIRCUIT CURRENT RATING: 10 KA
PNEUMATIC PRESSURE REQUIREMENT: 6 BAR (87 PSI)
RECORDED RUN TIME HOURS: 1,541 HOURS 17 MINUTES (VIA FANUC SYSTEM DIAGNOSTIC DISPLAY LOG)
X-AXIS TRAVEL: 31.5 IN (800 MM)
Y-AXIS TRAVEL: 19.7 IN (500 MM)
Z-AXIS TRAVEL: 19.7 IN (500 MM)
TABLE DIMENSIONS: 39.37 IN X 19.69 IN (1,000 MM X 500 MM)
MAXIMUM TABLE LOAD: 1,320 LBS (600 KG)
SPINDLE NOSE-TO-TABLE: 3.94 IN – 23.6 IN (100 MM – 600 MM)
SPINDLE SPEED: 10,000 RPM
SPINDLE TAPER: CAT 40 (BIG-PLUS)
SPINDLE MOTOR: 20 HP / 25 HP (CONTINUOUS / 30-MIN PEAK)
SPINDLE TORQUE: 87 FT-LBS
AUTOMATIC TOOL CHANGER (ATC): 30 STATIONS (SIDE-MOUNT TWIN-ARM STYLE)
RAPID TRAVERSE RATE (X / Y / Z): 1,890 IPM (48 M/MIN)
MAX CUTTING FEEDRATE: 394 IPM (10 M/MIN)
GUIDEWAY TYPE: PRECISION LINEAR WAYS
FLOOR SPACE REQUIRED (L X W): 134.65 IN X 82.68 IN
MACHINE WEIGHT: 11,023 LBS (5,000 KG)
EQUIPPED WITH:
MULTI-AXIS CNC ROTARY TABLE MODULE ATTACHMENT CONFIGURED FOR INDEXABLE 4TH-AXIS PART MILLING SETUP OPERATIONS
INTEGRATED SIDE TOOL MATRIX RACK CABINET HOUSING AN AUTOMATED 30-POCKET SIDE-MOUNT TOOL CHANGER MATRIX ARRAY
PREMIUM MULTI-NOZZLE HIGH-VOLUME FLEXIBLE COOLANT HOSE DELIVERY ASSEMBLIES
ENCLOSED INDUSTRIAL HARDWARE WORKSTATION PANEL ENCLOSURE WITH DOUBLE SLIDING DOORS AND VIEWING WINDOWS

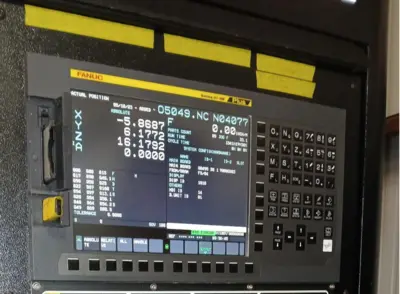

RIGHT-SIDE SWING-ARM INTEGRATED OPERATOR INTERFACE HOUSING THE FANUC 0I-MF PLUS CRT INTERFACE MODULE AND PHYSICAL AXIS ADJUSTMENT MANUAL CONTROL CONSOLE WHEELS
