2011 Tongtai HG-1250

Have one to sell?
847-721-7540
staff@machinery-management.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
TONGTAI
Model:
HG-1250
Year:
2011
Stock #:
6019
Status:
For Sale

Description

Tongtai HG-1250, Fanuc 31iMB, 78.7" x 55.1" x 49.2" Travels, 49.2" Pallets, 120 ATC, 4 axis, 6K RPM, 27.5" Quill, 30 HP, 8000 LB Table Load Capacity.

Pallet-W49.2"1,249.7 mm
Pallet-L49.2"1,249.7 mm
Max Table Load8,000 lb3,628.7 kg
X78.7"1,999 mm
Y55.1"1,399.5 mm
Z49.2"1,249.7 mm
Rapid Traverse (X/Y/Z)787787
Power86 hp64.1 kW
RPM6,000 RPM6,000 RPM
Taper#50#50
# ATC120120
# Axis44
ControlCNC (Fanuc 31iMB)CNC (Fanuc 31iMB)
Dimensions344" x 203" x 159"344" x 203" x 159"
Weight110,000 LBS110,000 LBS

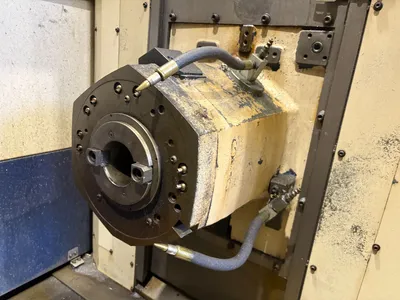

001 degree 4th axis contouring on pallet (Full B Axis)

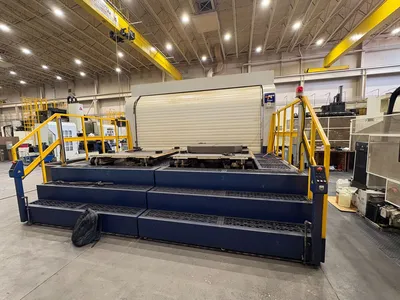

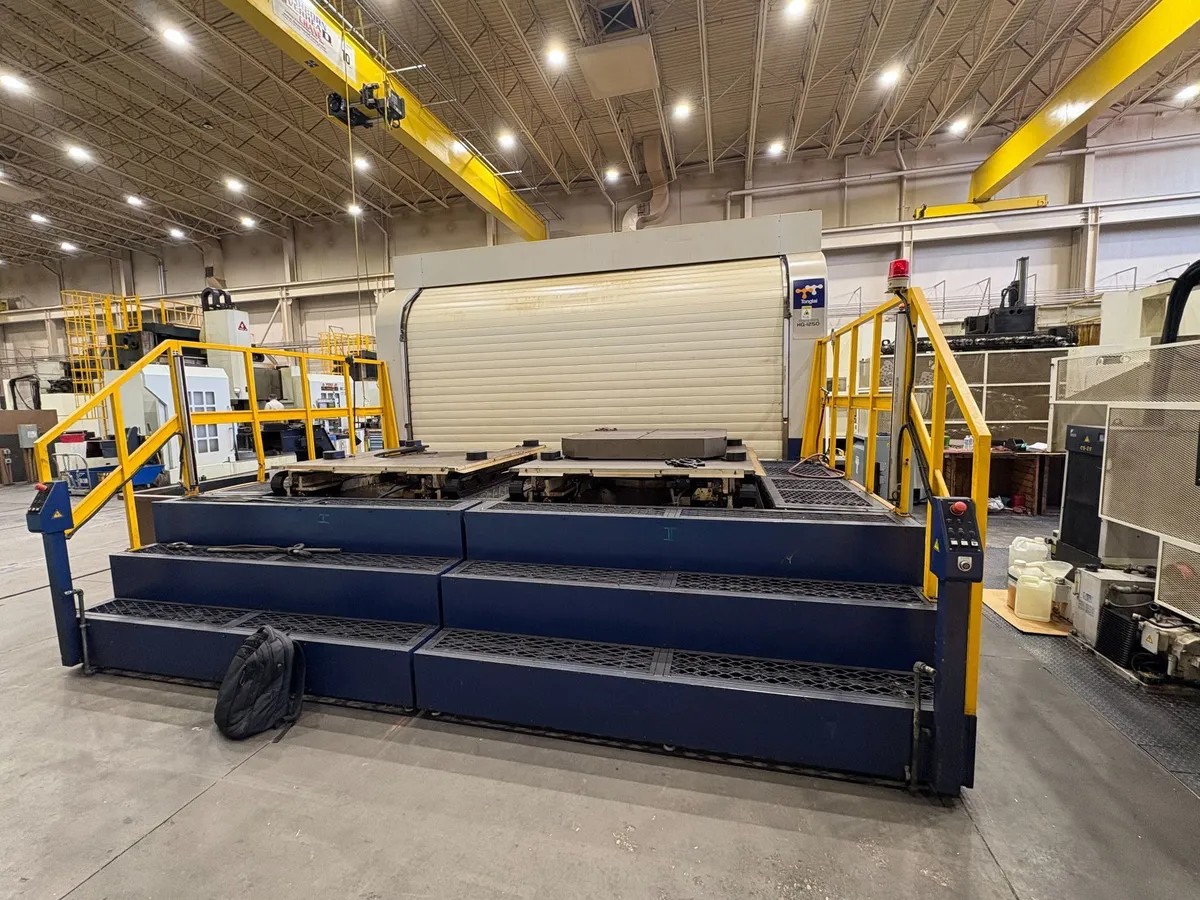

2 pallet automatic pallet system
120 tool ATC
215 PSI Coolant thru the spindle
Auto Lubrication with Alarm
Chip Conveyors (screw type)
Chip conveyor (Caterpillar type)
3 axis linear scales (XYZ)
B axis rotary scale
Spindle cooling system
Rigid tapping (3000 RPM Max.)
Flood coolant system
Full Machine Enclosure
Heat exchanger for control cabinet
Remote manual pulse generator
Spindle Air Blast
