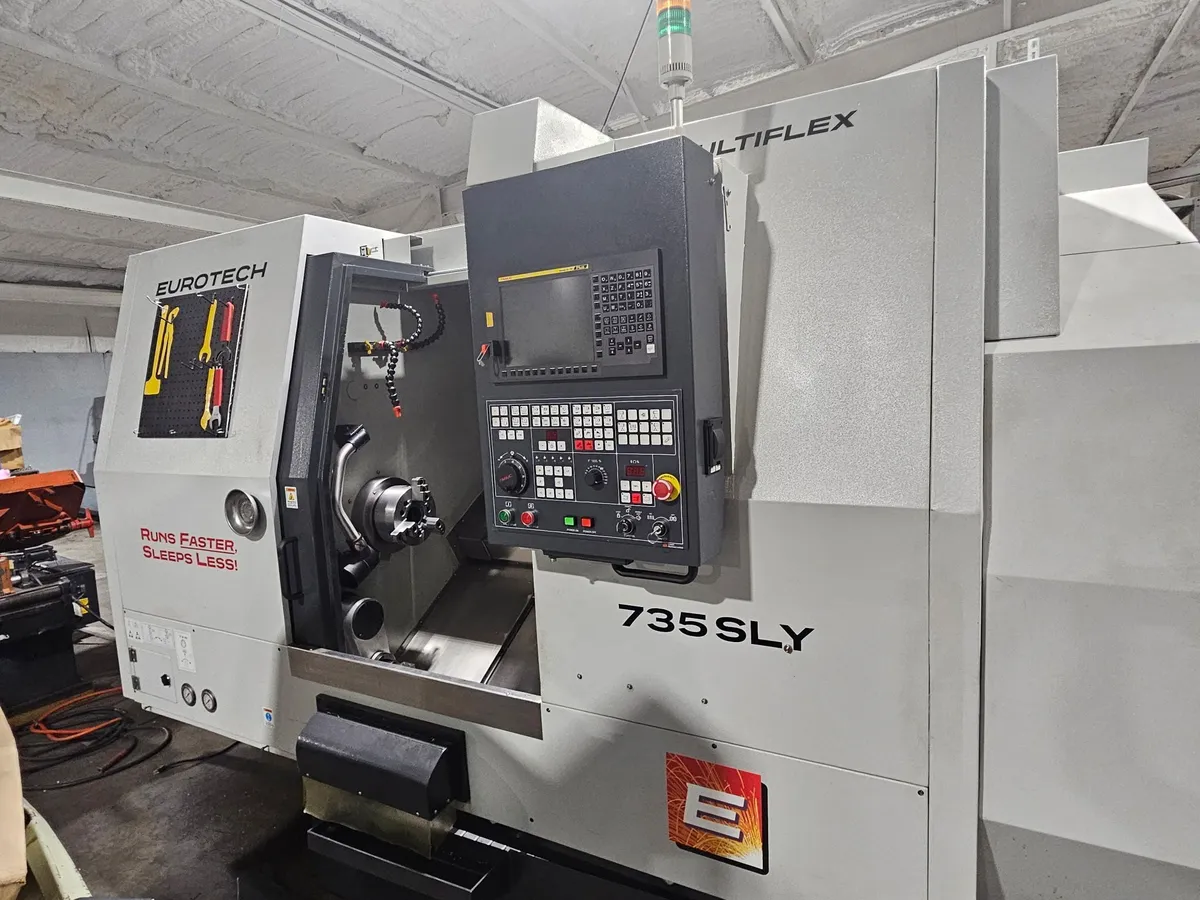

Used 2024 EUROTECH 735LY | CNC Turning Centers, Horizontal CNC Turning / Live Milling
Have one to sell?
ConditionUsed
1 available
2024 Eurotech / Lokesh 735SLY, 2.55" Bar Capacity,
Max. Machining Diameter- 12.6”
Bar Capacity-2.55”
Max Swing-23.62”
Max Speed-4000RPM
Spindle Nose- A2-6”
Spindle Bore-3.07”
Max Chuck Dia-8(10)
Motor Power- 30HP
Sub-Spindle
Max Speed- 4000RPM
Spindle Nose- A2-5”
Spindel Bore- 2.17”
Max Chuck Dia- 6.5”
Motor Power- 15HP
Turret
Max no. Of Cutting Tools- 72
Turret Stations- 12
Live Tooling
Live Tool Speed- 6000RPM
Motor HP-30min. Rating- 7.3HP
C-Axis
Min. Programmable Value- Deg. .001
Axes
X-Axis Travel- 8.07”
Z-Axis Travel- 22”
Y-Axis Travel- +2.17”/-1.97”
B-Axis Travel- 20.08”
X-Rapid-787ipm
Z-Rapid-945ipm
Y-Rapid-393ipm
B-Rapid-708ipm
2024 Eurotech / Lokesh 735SLY, 2.55" Bar Capacity,
Imperial
| Swing | 23.62" |
| Turning Diameter | 12.6" |
| X-Axis Travel | 8.07 in |
| Z-Axis Travel | 22 in |
| Chuck Size - Main | 10" |
| Chuck Size - Sub | 6.5" |
| Bar Capacity | 2.55" |
| Spindle Nose | A2-6 |
| Spindle Power - Main | 30 hp |
| Spindle Power - Sub | 15 hp |
| Spindle Speed - Main | 4,000 RPM |
| Spindle Speed - Sub | 4000 rpm |
| Tool Positions | 12 |
| Live Spindle Power | 7.3 hp |
| Live Spindle Speed | 6000 rpm |
| Tailstock | No |
| Control | CNC (Fanuc) |
Max. Machining Diameter- 12.6”
Bar Capacity-2.55”
Max Swing-23.62”
Max Speed-4000RPM
Spindle Nose- A2-6”
Spindle Bore-3.07”
Max Chuck Dia-8(10)
Motor Power- 30HP
Sub-Spindle
Max Speed- 4000RPM
Spindle Nose- A2-5”
Spindel Bore- 2.17”
Max Chuck Dia- 6.5”
Motor Power- 15HP
Turret
Max no. Of Cutting Tools- 72
Turret Stations- 12
Live Tooling
Live Tool Speed- 6000RPM
Motor HP-30min. Rating- 7.3HP
C-Axis
Min. Programmable Value- Deg. .001
Axes
X-Axis Travel- 8.07”
Z-Axis Travel- 22”
Y-Axis Travel- +2.17”/-1.97”
B-Axis Travel- 20.08”
X-Rapid-787ipm
Z-Rapid-945ipm
Y-Rapid-393ipm
B-Rapid-708ipm
