| Table-W | 17.7" | 449.58 mm |
| Table-L | 43.3" | 1,099.8 mm |
| Table Load Capacity | 1,540 lb | 698.5 kg |
| X | 31.5" | 800.1 mm |
| Y | 16.1" | 408.94 mm |
| Z | 20" | 508 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |

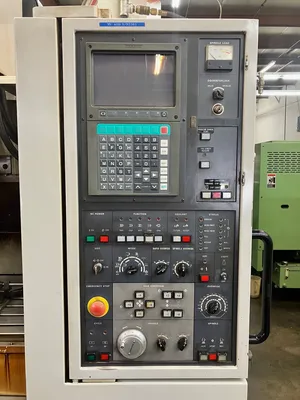

| Control | CNC (Yasnac) | CNC (Yasnac) |
| Dimensions | 110" x 87" x 106"H | 110" x 87" x 106"H |
| Weight | 12,500 | 12,500 |
X Travel (Longitudinal) 31.5"
Y Travel (Cross) 16.1"
Z Travel (vertical) 20.1"
Table working surface 43.3" x 17.7"
Table work load capacity 1540 Lbs.
Spindle horsepower 10 HP
Spindle speeds 30-8000 RPM
Spindle taper Cat #40
Feed Rates 0.1 to 400 IPM
Rapid Traverse 400 IPM
Tool storage capacity 20
Approximate dimensions 110"x87"x106"H
Weight (approx) 12,000 Lbs
