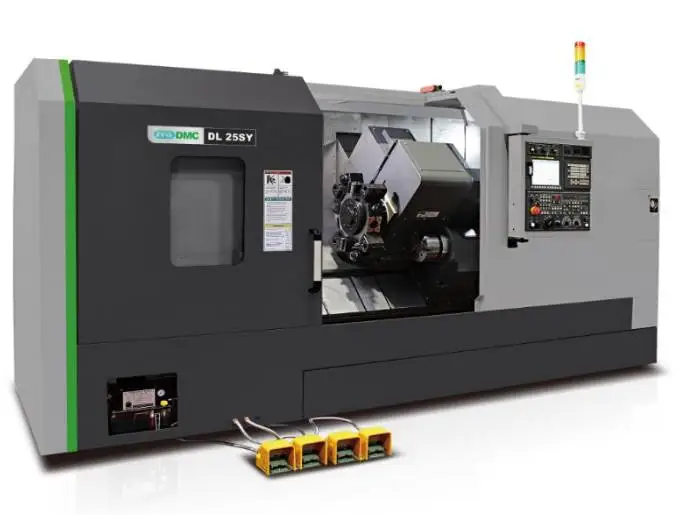

DMC DL25SY - New

Have one to sell?
847-721-7540
staff@machinery-management.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
CNC Turning Centers, Horizontal CNC Turning / Live Milling / Multi-Axis
Manufacturer:
DMC
Model:
DL25SY
Condition:
New - In-Stock
Stock #:
5824-N
Status:
For Sale
Swing27.9"708.66 mm
Machining Length39.37"1,000 mm
Turning Dia15.75"400.05 mm
Chuck Size-Main10"254 mm
Chuck Size-Sub8"203.2 mm
Bar Capacity-Main3.03"76.962 mm
Bar Capacity-Sub3.03"76.962 mm
Spindle Power-Main30 hp22.4 kW
Spindle Power-Sub15 hp11.2 kW
Spindle Speed-Main3,500 RPM3,500 RPM
Spindle Speed-Sub4,000 RPM4,000 RPM
Spindle Nose-MainA2-8A2-8
Spindle Nose-SubA2-6A2-6
X-Axis Travel8.6"218.44 mm
Y-Axis Travel2.17"55.118 mm
Z-Axis Travel41.34"1,050 mm
C-Axis Travel0.001 deg.0.001 deg.
Rapid Traverse X/Z787/945787/945
Live Spindle Motor7.4 hp5.5 kW
Live Spindle Speed5,000 RPM5,000 RPM
Turret Positions1212
Dimensions162"x79"162"x79"
Weight17,19617,196

Fanuc 0iT, 10.4" LCD, Manual Guide I, 3500RPM/4000RPM, 30HP/15HP, 10" Chuck/8" Chuck, 3.11" Drawtube ID, 12 Turret Stations (Servo, BMT 55), A2-8/A2-6, X/Z Box Way, Chip Conveyor, Bar Feeder Interface, Tool Presetter, Parts Catcher(Main Spindle), Parts Ejector

FOB: Los Angeles
