New

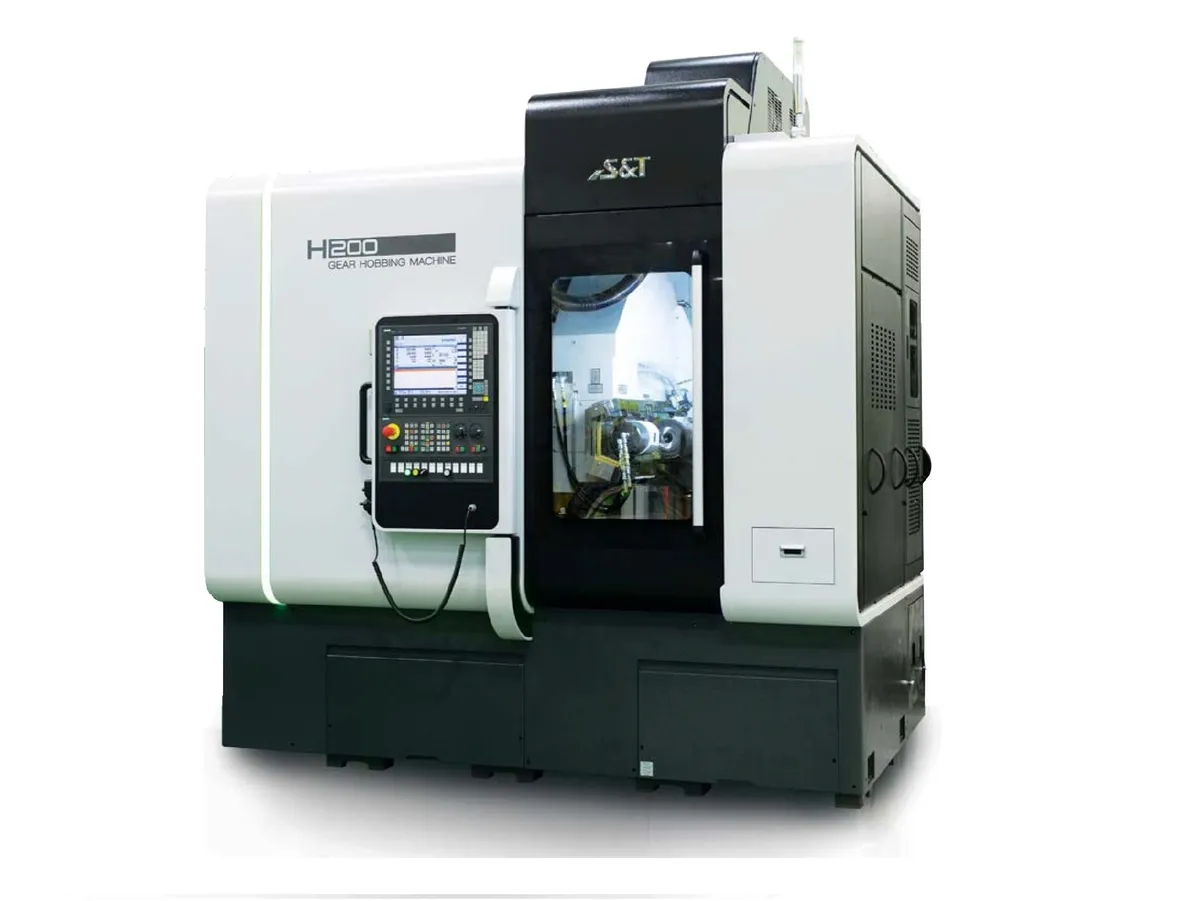

S&T DYNAMICS H200 - New
Gear Equipment, CNC
| Hobber Type | Vertical |
| Max Gear Diameter | 7.87" |
| Max. Module | M4.5 |
| Table Diameter | 9.45 in |
| Max Hob Diameter | 7.09 in |
| Max. Hob Length | 7.48 in |
| X-Axis Travel | 7.87 in |
| Z-Axis Travel | 13.78 in |
| Rapid Feed X/Z | 472 IPM |
| Swivel Angle | +/- 45 º |
| Hob Speed | 1500 |
| Hob Shift Travel | 6.69 in |
| Tailstock Stroke | 14.96"~30.71" |
| Hob Arbor Taper | NT40 |
| Dimensions | 111"x104"x111" |
| Weight | 20000 |
Fanuc CNC
Hydraulic System
Magnetic Separator
Hob Arbor Set
Oil Cooler
FOB: Los Angeles Port
DELIVERY: 60-90 Days
